Compute the non-deterministic finite automaton (NFA) by using Thompson's algorithm. Compute the minimal deterministic finite automaton (DFA). The alphabet is Σ = { a, b, c }. Indicate the number of processing steps for the given input string.

  • G = { a|b*, bc*, a|c* }, input string = abbcac

Solução

Solução completa

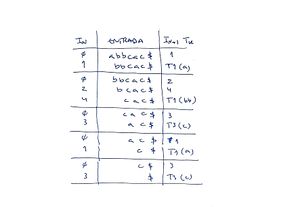

Solution-co-ex24-nfa-dfa.jpg Solution-co-ex24-dfa-graph-min-tree-graph.jpg Solution-co-ex24-input.jpg
